Designed For Heavy-Duty Transport

Together with the kingpin, the fifth wheel forms the decisive link between the tractor unit and the semi-trailer. It carries the weight of the semi-trailer and ensures its unrestricted movement. It also absorbs various forces when braking or accelerating and the swaying movements of the trailer, for example on bends. In order for the yoked unit to travel safely both on-road and off-road, the maximum imposed load and the corresponding d-value, the reference value for the tractive force between tractor unit and trailer, also need to be optimally coordinated.

Robust heavy-duty fifth wheel

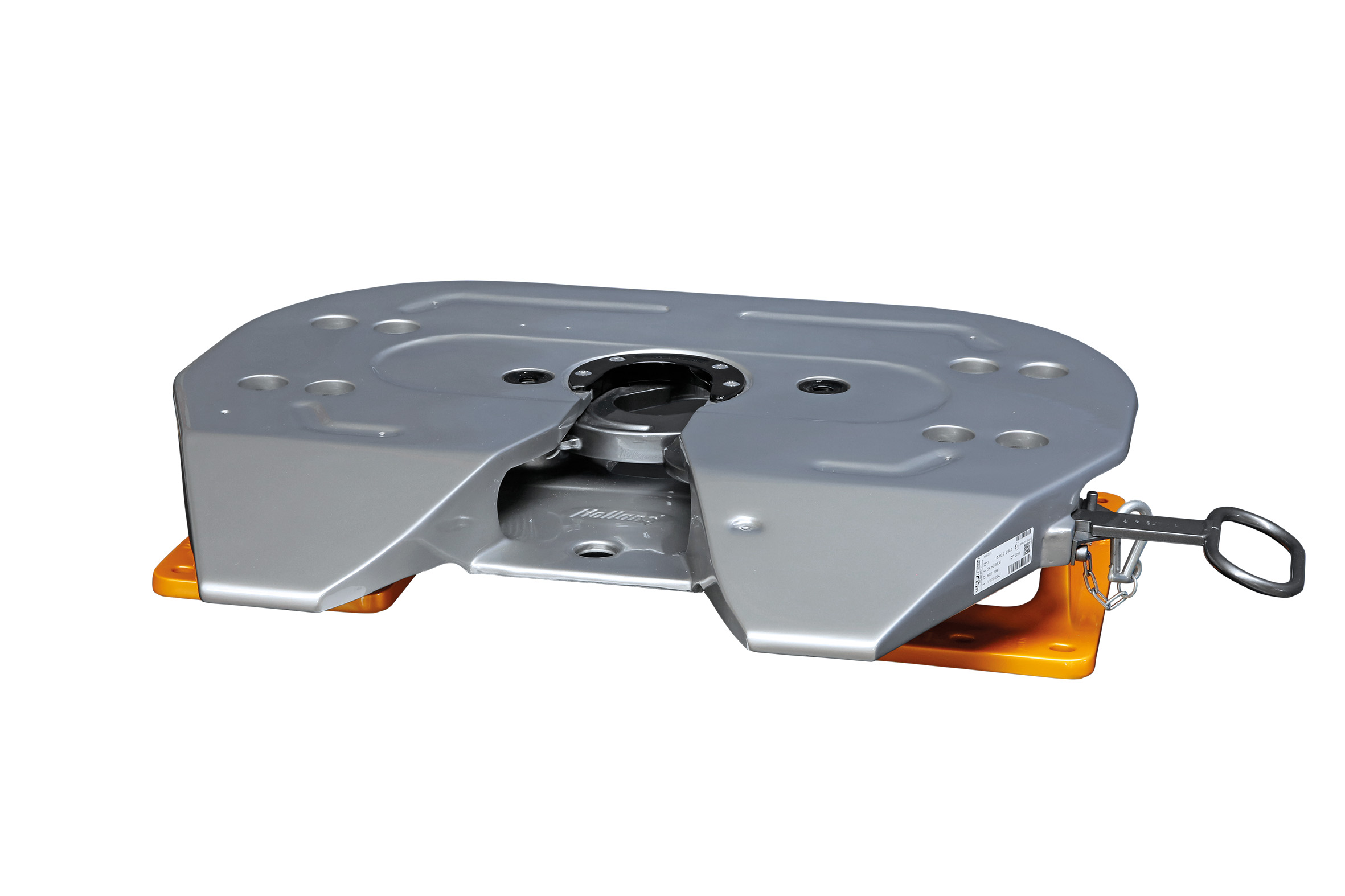

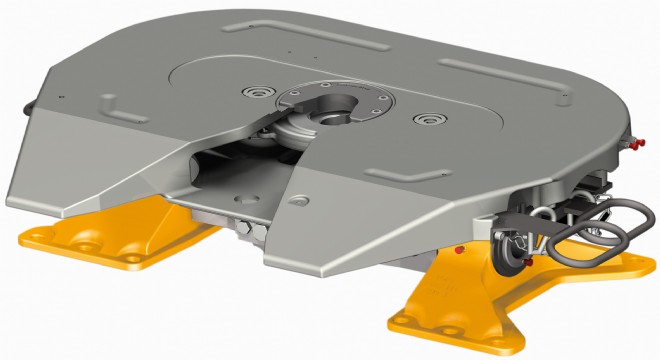

Fifth wheels in vehicles travelling on construction sites or landfills need to be able to bear particularly high imposed loads. SAF-HOLLAND has developed its heavy-duty fifth wheel SK-HD 38.36 for this purpose: It is designed for transporting imposed loads of up to 36 tonnes.

The component, which features an extremely robust cast steel coupling plate, is available in two versions: for imposed loads of up to 23 tonnes (2'') and up to 36 tonnes (3.5''). If necessary, the fifth wheel can be converted from 3.5'' to 2'' and vice versa. SK-HD 38.36, available in overall heights of 150 and 190 mm, is suitable for the SAF steering wedge for semi-trailers with forced steering. The 185 kg fifth wheel is impressive thanks to its permanently maintenance-free bearings and simple lock adjustment.

Fifth wheel for off-road applications
SAF-HOLLAND offers the 36t fifth wheel SK-HD 38.36 G, especially for use on tough terrain. The offroad
version with cardanic bearings is suitable for all types of terrain, particularly for transportation over tough terrain: It compensates for pitch and roll to maintain the traction of the tractor unit and protects it against frame damage. The 272 kg cast steel coupling is designed for imposed loads of 23 tonnes (2'') and 36 tonnes (3.5'').

Slider enables optimum utilisation of axle load
The exact installation position of the fifth wheel depends on a number of factors, including behaviour when swerving and handling bends and the legally restricted overall length of the tractor-trailer combination. A slider helps to make optimum utilisation of the permissible axle load and to distribute the imposed load individually
on the tractor unit. It also allows the vehicle length to be adapted to national regulations or special requirements, for example in ferry operations.

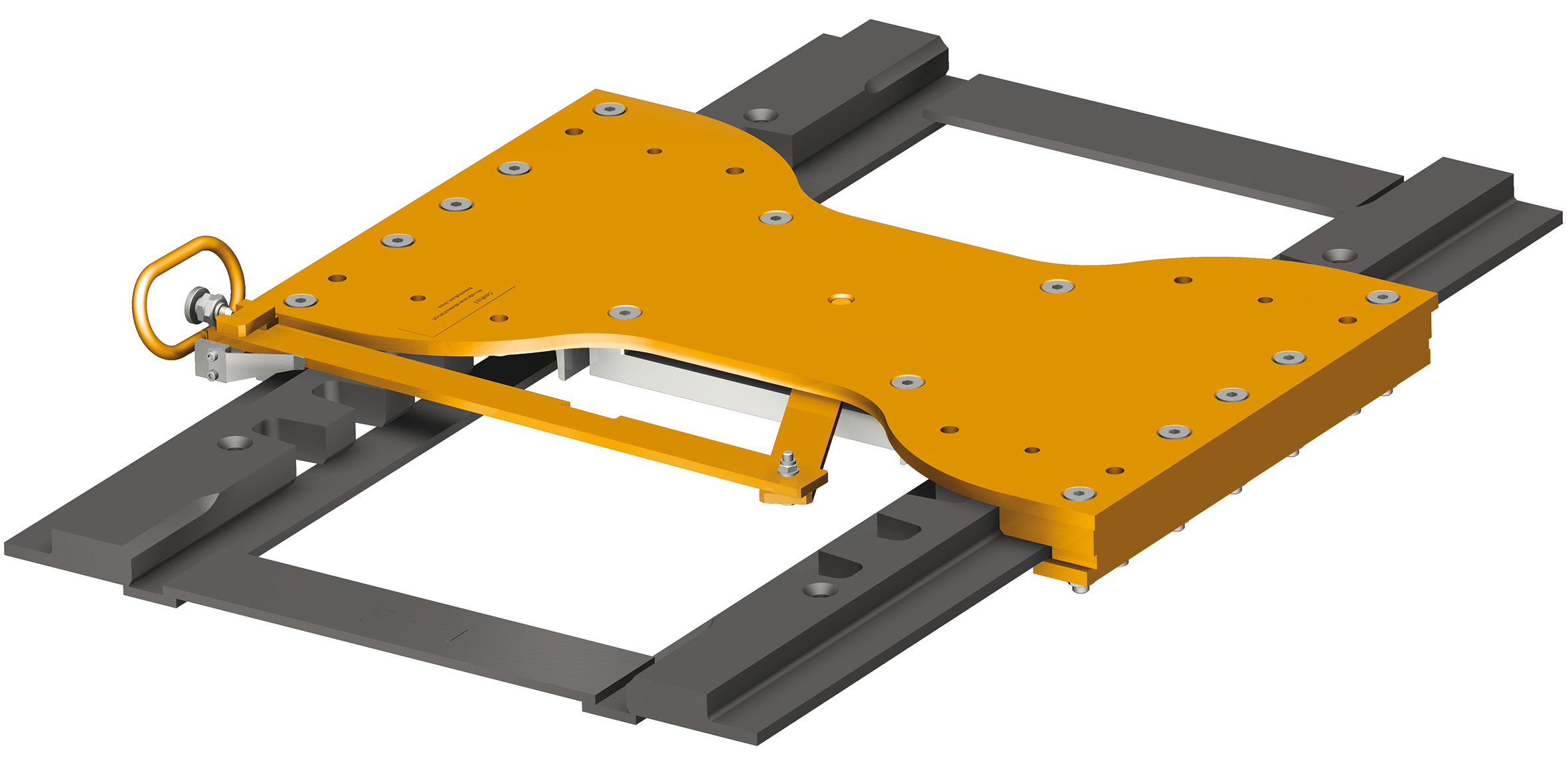

The SAF-HOLLAND Group’s product range includes the slider SK-V 36 for heavyduty fifth wheels of 150 mm and 190 mm overall height and imposed loads of 36 tonnes. The device, ideally coordinated with the SK-HD 38.36 fifth wheel, allows total slider travel of 800 mm over nine positions. It has a low overall height of just 57 mm, can be operated single-handedly and is approved for forced steering with steering wedge.
